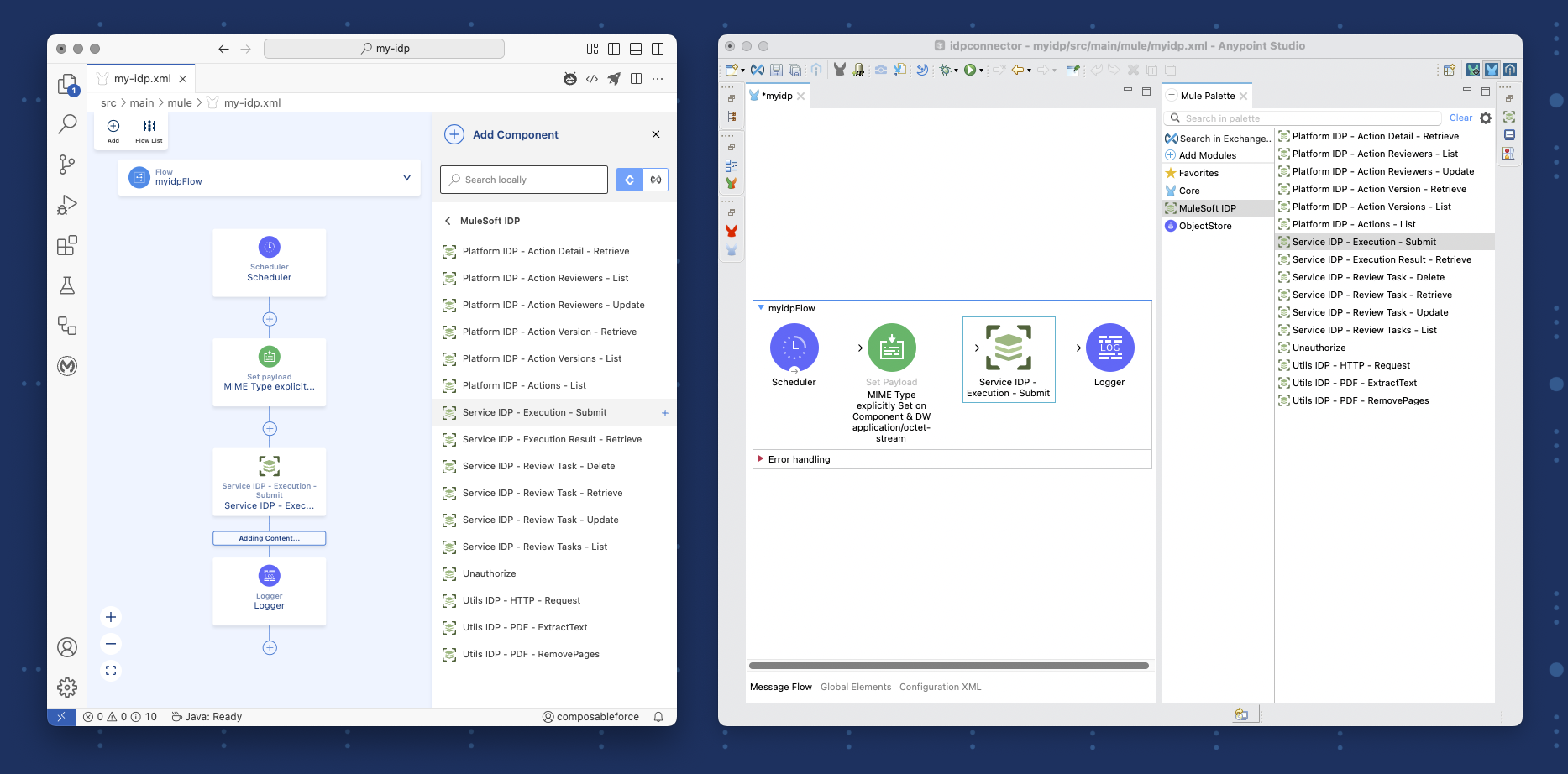

Operations

Specification for MuleSoft IDP Universal Connector Open-Source

---

Purpose:

To create a MuleSoft IDP Universal Connector (using Mule SDK for Java) that wraps two REST APIs and adds value-add functionality such as Apache PDFBox, based on the MuleSoft IDP Universal Rest Smart Connector.

YES - unusual to expose Two rest endpoints in one connector but honestly they go hand in hand, arguably it could be said it was a design fault to have them separate so lets combine and simplify as a connector should be all about.

---

Scope:

Runtime Platform	Connector Operation Name	Required Authentication	URL
MuleSoft IDP Runtime Services	IDP Submit Doc Execution	OAuth 2.0 Client Credentials	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/versions/{version}/executions
MuleSoft IDP Runtime Services	IDP Retrieve Execution Result	OAuth 2.0 Client Credentials	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/versions/{version}/executions/{executionId}?valueOnly=true
MuleSoft IDP Runtime Services	IDP List Pending Review Tasks	Basic Authentication	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/reviews?page=0&size=10
MuleSoft IDP Runtime Services	IDP Delete a Review Task	Basic Authentication	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/reviews/{executionId}
MuleSoft IDP Runtime Services	IDP Retrieve a Review Task	Basic Authentication	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/reviews/{executionId}
MuleSoft IDP Runtime Services	IDP Update a Review Task	Basic Authentication	https://idp-rt.us-east-1.anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/reviews/{executionId}
MuleSoft Platform Services for IDP	Platform IDP List Actions	Basic Authentication	https://anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions?page=0&sort=updatedAt,desc
MuleSoft Platform Services for IDP	Platform IDP Retrieve Action Detail	Basic Authentication	https://anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}
MuleSoft Platform Services for IDP	Platform IDP List Action's Versions	Basic Authentication	https://anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/versions?page=0&size=10&sort=version,desc
MuleSoft Platform Services for IDP	Platform IDP Retrieve Action's Version	Basic Authentication	https://anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/versions/{versionSemantic}
MuleSoft Platform Services for IDP	Platform IDP List Action's Reviewers	Basic Authentication	https://anypoint.mulesoft.com/idp/api/v1/organizations/{organizationId}/actions/{actionId}/reviewers

---

Surface the MuleSoft IDP Runtime Services

1. Submit Document to MuleSoft IDP see Execute the Published Document Actions
   • Support Base64 Interface including Input MetaData
   • Support Multipart Interface including Input MetaData
   • Support Response Output MetaData
   • Support optional Header x-sfdc-core-tenant-id
   • Support optional CallbackUrl on both interfaces
   • Value Add: Add ability on submission to utilize Apache PDFBox®
     • Submit only selected pdf pages ie 1,3,10,11 or 1-3,6,8-12
     • Remove Blank Pages (Apache PDFBox may not support)
   • Value Add: Debate Validate for Limits in Connector (hard coding really)
2. Retrieve Results from MuleSoft IDP see Retrieve the Results of the Execution
   • Support valueOnly Query parameter - Only keep the extracted value of the given field, remove confidenceScore and geometry from the response body
   • Major Work: Support Response Output MetaData using MuleSoft Platform Services for IDP to interrogate Action Version schema at design time

---

Additional MuleSoft IDP Runtime Services

See MuleSoft IDP Runtime Services

1. List All Review Tasks from MuleSoft IDP
   • Description: list of all executions requiring manual review, across all actions, that the requesting user has permission to review - So login details are important here
   • Support Response Output MetaData
2. Delete a Review Task from MuleSoft IDP
   • Description: Delete a Review Task by Execution Id (Execution Status is updated as SUCCEEDED without changing the execution result)
   • Support Response Output MetaData
3. Get Low Confidence fields for an Execution in Review from MuleSoft IDP
   • Description: Get a list of low-confidence fields by Execution Id
   • Support Response Output MetaData
4. Update the Low Confidence fields for an Execution in Review from MuleSoft IDP
   • Description: Patch a list of low-confidence fields by Execution Id
   • Support Request Input MetaData
   • Support Response Output MetaData

---

Surface the MuleSoft Platform Services for IDP

1. List All Document Actions for an Organization
   • Description: Get a list of low-confidence fields by Execution Id
   • Support Response Output MetaData
2. Get an Action Detail
   • Description: Get a list of low-confidence fields by Execution Id
   • Support Response Output MetaData
3. List an Action's Versions
   • Description: Get a list of low-confidence fields by Execution Id
   • Support Response Output MetaData
4. List an Action's Reviewers
   • Description: Get a list of low-confidence fields by Execution Id
   • Support Response Output MetaData

---

Universal Service for IDP

1. Universal Http Resource
   • Experimental: How about we create a resource that can have json in json out and the developer configures the URL but reuses all the hard work of configuration/connectivity. Therefore the Connector does not become obsolete so quickly, ie we can support other services for the host.

---
